5t H4M S15M MH Model Single Beam Gantry Crane Q235B Material

Henan Mine Crane Co.,Ltd.
Contact Now

5t H4M S15M MH Model Single Beam Gantry Crane Q235B Material

  • 1
  • 2

Brand Name : Kuangyuan

Model Number : MH

Certification : CE ISO

Place of Origin : China

MOQ : 1SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100ets/month

Delivery Time : 30working days

Price : Negotiable

Packaging Details : Standard export packaging

Product name : enan Mine MH Model Gantry Crane End Beam Used for Overhead Crane 10t

Work Duty : A3-A5

Color : Customised

Control Method : Remote Control

Power supply : 220V-460V 50/60Hz

Application : Normal Working Environment

Material : Q235B

Main electrical parts : Schneider

After-sales Service Provided : Engineers available to service machinery overseas

Brand : Kuangyuan

Contact Now

Henan Mine Canre 5t H4M S15M MH Model Single Beam Gantry Crane

The gantry crane with a single MH type belt has box type and sheet type, the former have good techniques and light fabrication, the latter is light in dead weight and strong in wind resistance. For various uses, the MH crane crane also has cantilever crane and not cantilever. If you have convex, the crane can load the goods on the edge of the crane through the support legs, which is very convenient and highly efficient.

Main Features of MH model gantry Crane:

1.Simple and compact structure, steady performance.

2.Easy to install and high efficiency.

3.Overload, low voltage protective device.

4.Pendent control and remote control.

5.Easy maintenance.

Product Structure
Rated load/ton 5 10 16 20
Span/m 10-40
Lifting height/m 30
Working class A3/1bM
Lifting speed/m/min 8 7 3.5 3.5
Trolley running speed/m/min 20 20 20 20
Crane running speed/m/min 20 20 20 20
Dead weight/t 10.5~37.5 16.8~52 18.9~65 24.5~77

5t H4M S15M MH Model Single Beam Gantry Crane Q235B Material

Attention:

Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).

Product Details:
5t H4M S15M MH Model Single Beam Gantry Crane Q235B Material

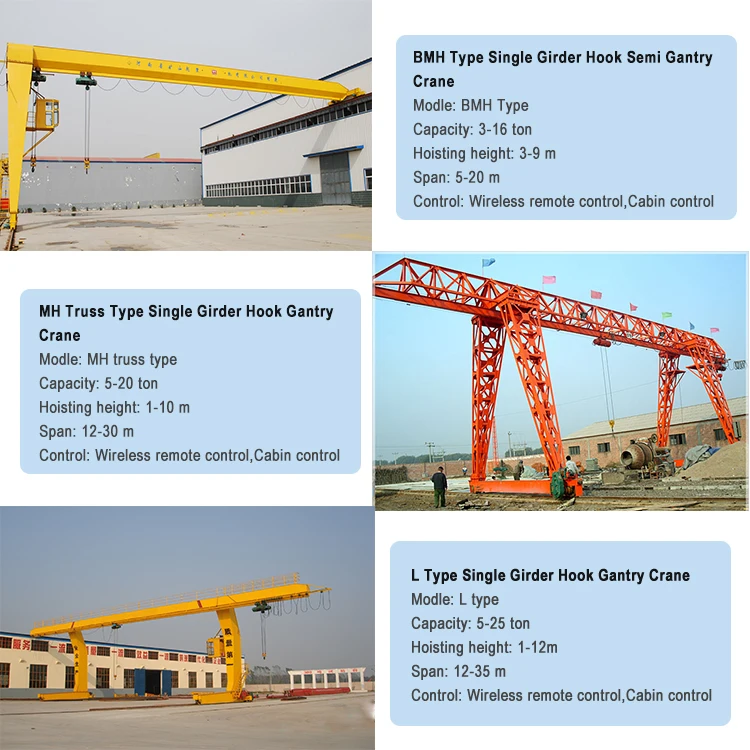

Main Parts of MH model gantry Crane:

5t H4M S15M MH Model Single Beam Gantry Crane Q235B Material

Related Products:
5t H4M S15M MH Model Single Beam Gantry Crane Q235B Material

Main Product

Henan Mine Crane meet the demand factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane.

Certifications

We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.

FAQ:


Q1.What do Henan mine crane do?

A: We design,manufacture,install overhead crane ,granty crane, port ciane,hoist mwinch and provide customer lifting solutions.

Q2.Do you provide professional crane servicing?

A: Yes and our service team offer a range of professional services to installation and your crane.

Q3.What do I need to consid when purchasing from you?

A:Standard items to conside when purchaing any lifting equipment such as over as overhesd crane and gantry crane or hoist ,it including safe working load ,span and lifting height, duty cycles and cost of spare parts.

Q4.What makes you different from other manufacturers?

A: We have trained service technicians who will be able to get your material handing equipment up and running ,and have been providing our customer's an effective solution.

Q5.What areas do yo serves?

A: We maily service in china and can send engineers provided installations and maintenancein all over the world.

Contact us:

Thank you for your interests in Henan Mine Crane Co.,Ltd. We look forward to receiving your any question about Electric Winch and provide you our best solution.
